Free 3D Max Script : Fracture Voronoi

This script breaks any mesh while preserving its volume.


Additional Info:

v1.0:

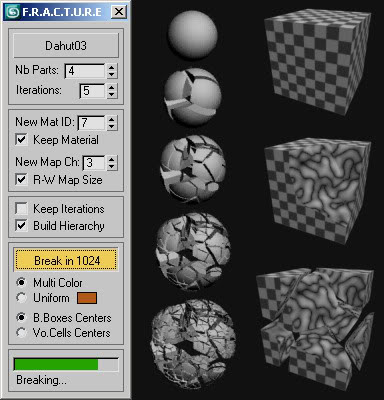

The picked object is broken in a specified number of parts, using Voronoi cells, and the creation process is visible in the viewport.
For a similar result, it is faster to use several iterations with a small number of parts than creating all the parts in one iteration.
Note that the original object is just hidden, not deleted.

v1.1:
In this version, the code has been improved and runs much faster. But there is no viewport feedback any more.
Materials:
  • - the outer faces keep their original material IDs and the new faces are assigned a unique ID. The value that appears by default is the highest ID in use + 1.
  • - mapping coordinates (if any) are preserved and somehow 'projected' onto the new faces.
  • - an extra planar mapping is applied and set on its own channel and is consistent between all the pieces, typically for use with 3D procedural maps.
Hierarchy:
  • - when using several iterations, it is possible to keep the intermediate generations of parts.
  • - when linked, each part is parented to the one it is derived from.
  • - generations are set on their own layers, which are hidden except for the last one.
Download Here :

FractureVoronoi_v1.1.ms

FractureVoronoi_v1.0.ms

VIDEO TUTORIAL : Here
